Products Details:
Stainless Steel Flexible Metal Corrugated Pipe For Auto Muffler
Usage and application:
Perfect for custom downpipe / exhaust -straight pipe connector, made of high quality steel -heavy duty / tight woven interlock braided pattern -braided (inner and outer) with stainless steel wires ,anodized trumpet opening -eliminating the vibration generated by vehicles engine, therefore relieving stress on exhaust / downpipe system -reducing the risk of cracking manifold / downpipe during vibration cause by vehicles engine / extending life span of vehicles components -extension on both ends for easy welding process.
Keyword: exhaust flex pipe, exhaust corrugated bellow pipe
Brief introduction:
1) Automobile exhaust system component
2) Installed between engine and muffler
3) Used to decrease engine noise and vibration
4) Absorbs muffler pipe thermal expansion and shock
5) Compensates for exhaust converter misalignment
6) Reduces air pollution
Materials:
| Bellow material: | Stainless steel 304(thickness: 0.25 - 0.30mm) |
| Braid and interlock | Stainless steel 304 |
| Collars(cap) | Stainless steel or aluminized steel |
| Nipples(extensioin pipe) | Stainless steel or aluminized steel
|

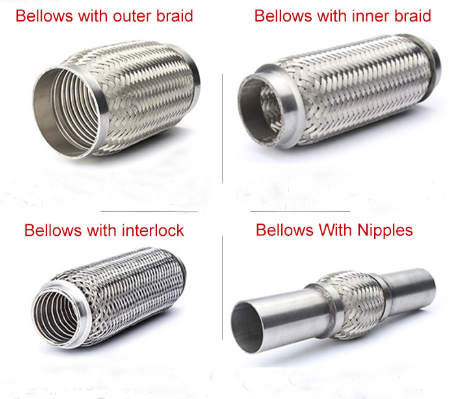

Structures:
1) bellows+out braid
2) bellows+out braid+nipples
3) bellows+out braid+inner braid
4) bellows+out braid+inner braid+nipples
5) bellows+out braid+inter lock
6) bellows+out braid+inter lock+nipples
7) others & as samples and drawings
Size:
ID: 42-100(mm)/ 1.62-3.94(inch)
Length: 100-305(mm)/ 3.94-12(inch)
Details:
Packaging and Delivery:
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF
Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.
Stocks:
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
|
|

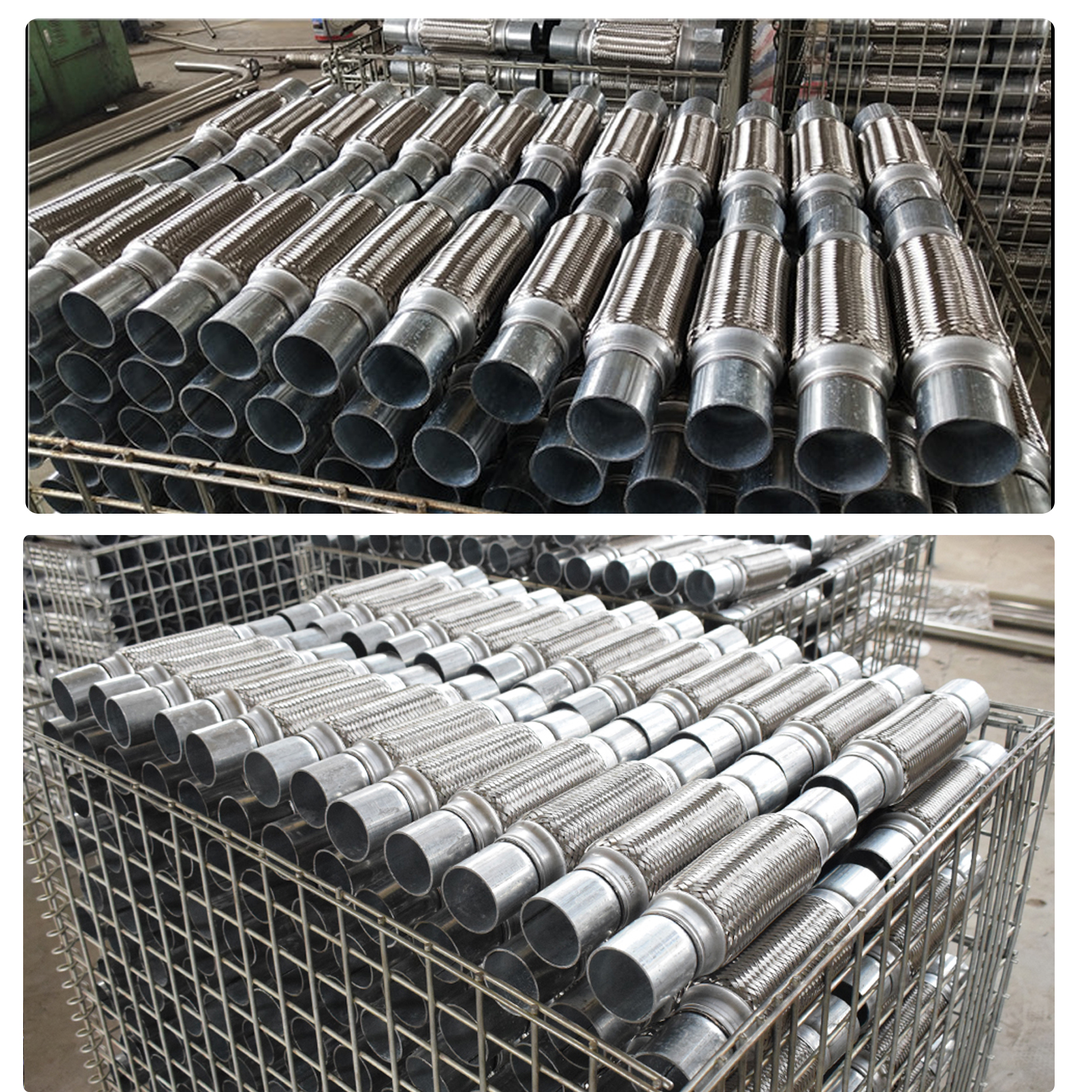

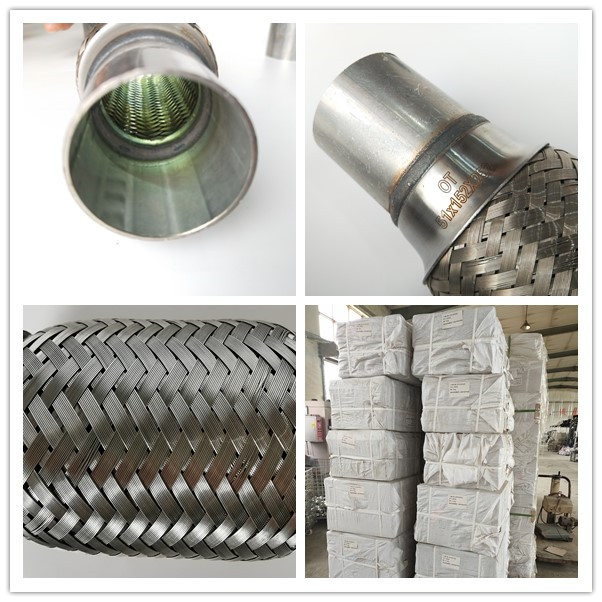

Stainless Steel Flexible Metal Corrugated Pipe For Auto Muffler Images
|
