Flexible Exhaust Muffler Pipe Connector for Generator , auto bellow
Exhaust Muffler Pipe Connector consists of four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel 304. For strong fuction, we can also add interlock inside upon request.
| Product Name | Flexible Exhaust Muffler Pipe Connector for Generator , auto bellow |
| Material | Stainless Steel 409 / 304 / 316, Aluminum cap or stainless cap |
| Packing | Bubble PE bag, Wooden Case, Neutral packing or negotiated |
| Size / Inner Diameter | 51mm (2 inch) , with braided length 150mm (6inch) , and overall length 250mm (10inch) , other sizes are available too. |
| Wall Thickness | 1.0mm , 1.2mm |
| Color | Silver |
| Price Term | EXW , FOB , CIF , C&F |
| Car Model | Universal |
| Application / Usage | Muffler , Car Exhaust System , Turbos |
| Sample | Available |
| Warranty | 1 year |
| Origin | Hebei, China |
Features and Benefits:
1. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;
2.Metal bellows to absorb large axial displacement between straight tube and support frame , and small horizontal displacement;
3 Very.Easy to install, clean and maintenance.
4. More types are available
5. Outer braid stainless steel,knitted by 12 units
6. Cap stainless steel or aluminized
7. Working pressure 0~5 Mpa
8. Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement
Application:

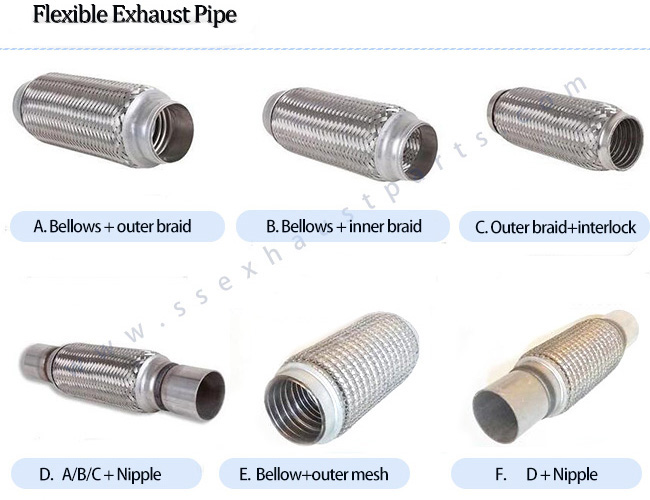

Exhaust Flexible Pipe Types :
Specifications of Flex exhaust pipe:
| Nominal Inside Diameter I.D. | Overall Length
O/L | Nominal Inside Diameter I.D. | Overall Length
O/L | Nominal Inside Diameter I.D. | Overall Length
O/L |
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| | 6”(152mm) | | 6”(152mm) | | 165mm |
| | 8”(203mm) | | 8”(203mm) | | 180mm |
| | 9”(230mm) | | 9”(230mm) | 50mm | 120mm |
| | 10”(254mm) | | 10”(254mm) | | 165mm |
| | 11”(280mm) | | 11”(280mm) | 54.5mm | 120mm |
| | 12”(305mm) | | 12”(305mm) | | 150mm |
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | | 180mm |
| | 6”(152mm) | | 6”(152mm) | | 200mm |
| | 8”(203mm) | | 8”(203mm) | | 250mm |
| | 9”(230mm) | | 9”(230mm) | 60mm | 160mm |
| | 10”(254mm) | | 10”(254mm) | | 200mm |
| | 11”(280mm) | | 11”(280mm) | | 240mm |
| | 12”(305mm) | | 12”(305mm) | 65mm | 150mm |
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | | 200mm |
| | 6”(152mm) | | 8”(203mm) | 70mm | 100mm |
| | 8”(203mm) | | 9”(230mm) | | 120mm |
| | 9”(230mm) | | 10”(254mm) | | 150mm |
| | 10”(254mm) | | 12”(305mm) | | 200mm |
| | 11”(280mm) | Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... |
| | 12”(305mm) |

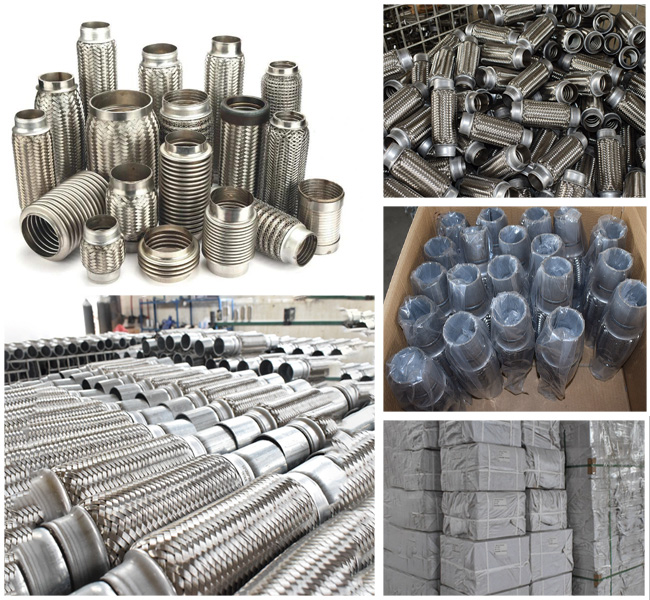

Warehouse / Packing:
Packaging :
box / carton / woven bag into wooden pallet or customize .
Shipping :
1. DHL / FEDEX / EMS / UPS / TNT to door .
2. Logistics ( to city ) .
3. Air transportation ( to airport ) .
4. Sea transportation ( to seaport ) .
Contact me:
If any inquiry, pls contac us any time :
Becky Shao
Email : becky@ypmachinery.com
Whatsapp / Cell / Wechat: +86-15933316077
Product Tags:
|
|

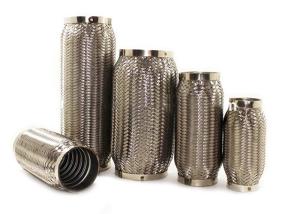

1.0mm 2"×6" Stainless Steel Exhaust Flex Pipe For Generator Images
|
