Products Details:

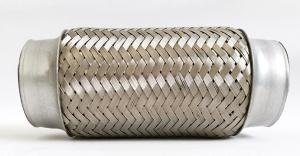

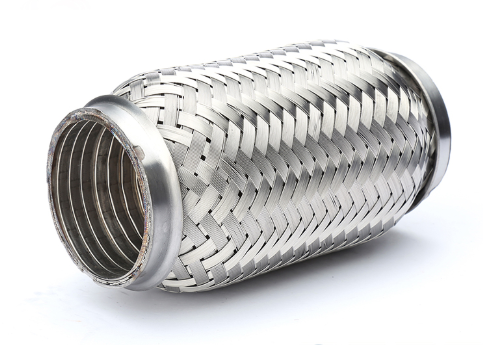

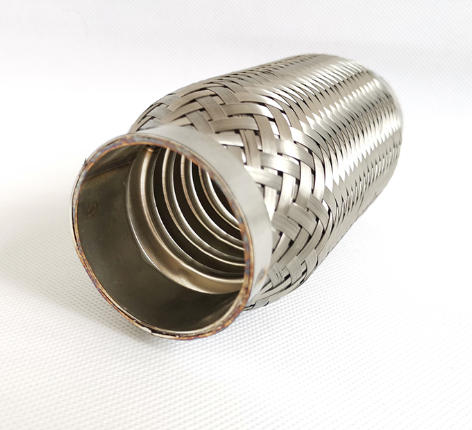

Vehicle Exhaust Component 51mm X 200mm Stainless Steel Exhaust Flex Pipe Outer Braid
- Perfect for custom downpipe / exhaust -straight pipe connector.
- Made of high quality stainless steel -heavy duty
- Tight woven interlock braided pattern -braided (inner and outer) with stainless steel wires ,anodized trumpet opening
- Eliminating the vibration generated by vehicles engine, therefore relieving stress on exhaust / downpipe system

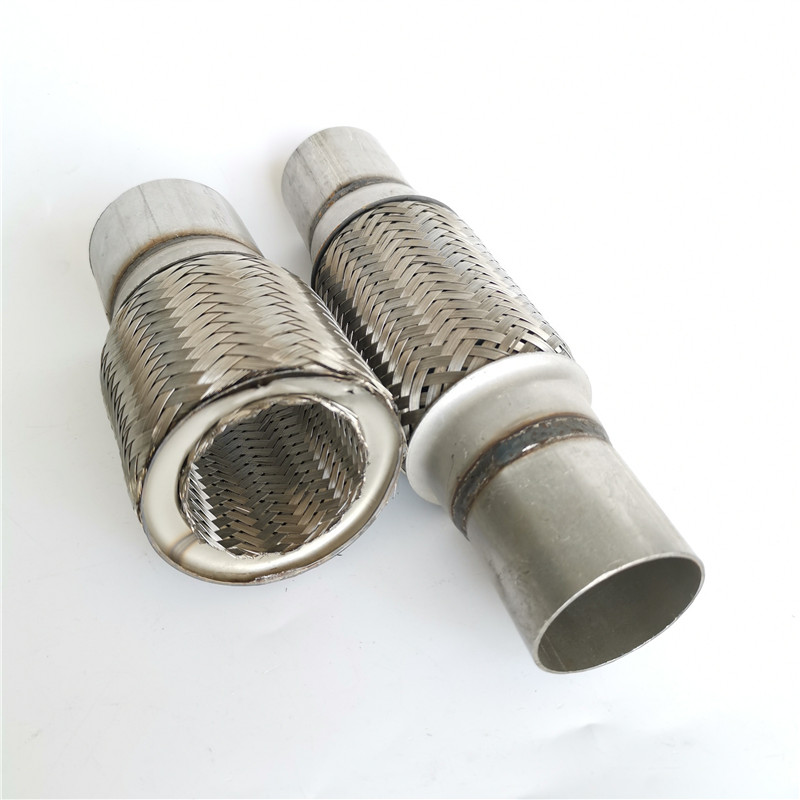

- Reducing the risk of cracking manifold / downpipe during vibration cause by vehicles engine / extending life span of vehicles components -extension on both ends for easy welding process.
- Dozen structures and dimensions to choose.
Keyword: exhaust flex pipe, exhaust corrugated bellow pipe
Structures choice:
1) bellows+out braid+inner braid
2) bellows+out braid+inner braid+nipples
3) Bellow + out braid

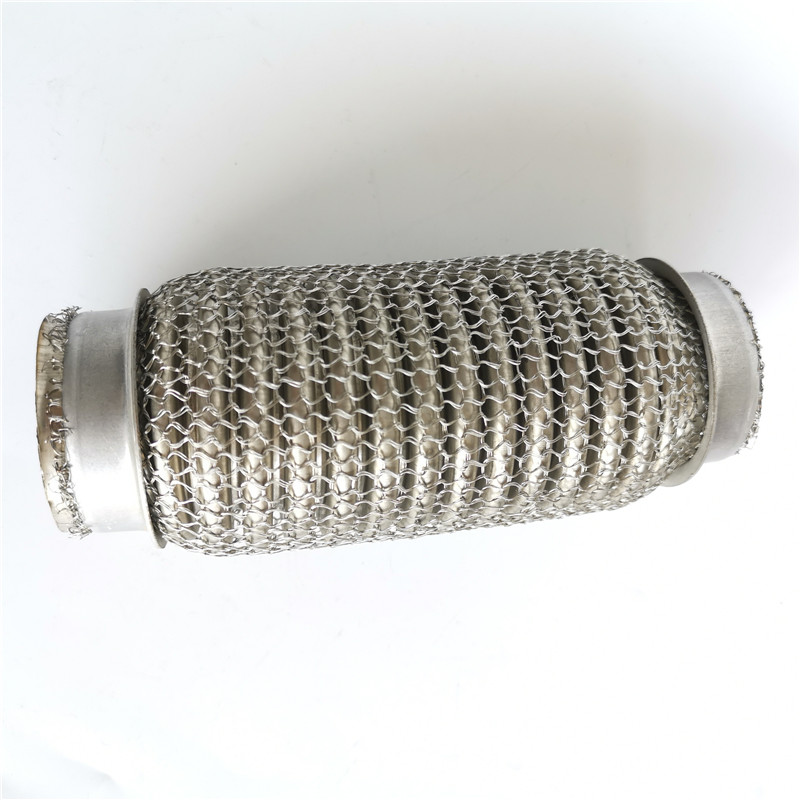

4) bellows + out braid + wire mesh
5) Bellows + interlock + outer braid
Specification:

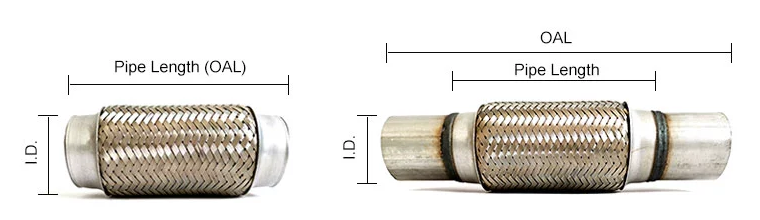

| Diameter (I.D.) | Pipe Length | Overall Length (OAL) | Diameter (I.D.) | Pipe Length | Overall Length (OAL) | Extensions |
| 1-1/2" | 4" | 4" | 1-1/2" | 4" | 8" | 2" |
| 1-1/2" | 6" | 6" | 1-1/2" | 6" | 10" | 2" |
| 1-1/2" | 8" | 8" | 1-1/2" | 8 | 12" | 2" |
| 1-1/2" | 10" | 10" | 1-1/2" | 10" | 14” | 2" |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | 2" |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | 2" |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | 2" |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | 2" |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | 2" |
| 2" | 4" | 4" | 2" | 4" | 8" | 2" |
| 2" | 6" | 6" | 2" | 6" | 10" | 2" |
| 2" | 8" | 8" | 2" | 8" | 12" | 2" |
| 2" | 10" | 10" | 2" | 10" | 14" | 2" |
| 2" | 12" | 12" | 2" | 12" | 16" | 2" |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | 2" |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | 2" |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | 2" |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | 2" |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | 2" |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | 2" |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | 2" |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | 2" |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | 2" |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | 2" |
| 3" | 4" | 4" | 3" | 4" | 8" | 2" |
| 3" | 6" | 6" | 3" | 6" | 10" | 2" |
| 3" | 8" | 8" | 3" | 8" | 12" | 2" |
| 3" | 10" | 10" | 3" | 10" | 14" | 2" |
| 3" | 12" | 12" | 3" | 12" | 16" | 2" |
| 4" | 4" | 4" | 4" | 4" | 8" | 2" |
| 4" | 6" | 6" | 4" | 6" | 10" | 2" |
| 4" | 8" | 8" | 4" | 8" | 12" | 2" |
| 4" | 10" | 10" | 4" | 10" | 14" | 2" |
Packaging and Delivery:
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF

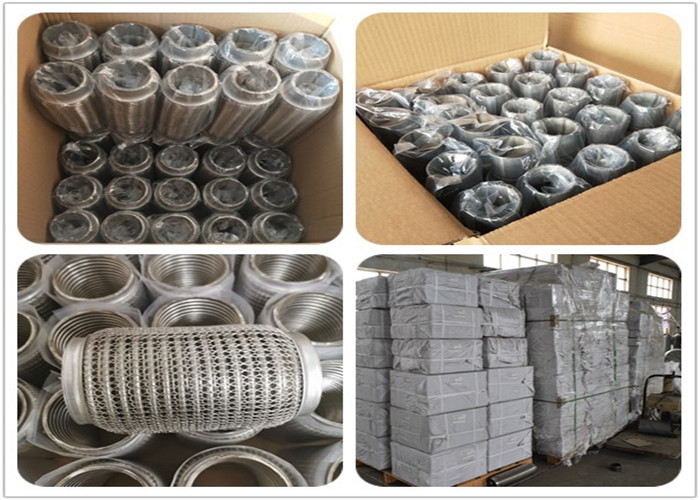

Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
